Edge Bander

Highly efficient and multi Functional Edge Banding Machines for your selection

Feeding Belt : Made of special material which guarantees long lasting sturdiness & stability. Synchronous teeth of belt & pinion gives high traction & vibration free movement with optimal panel holding

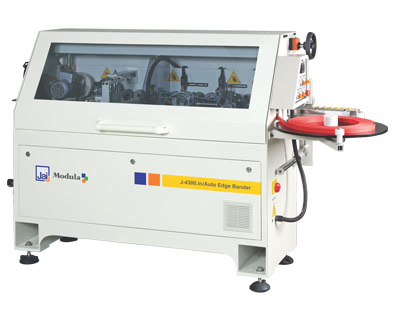

Model No.

J-4300.in

Feeding Belt : Made of special material which guarantees long lasting sturdiness & stability. Synchronous teeth of belt & pinion gives high traction & vibration free movement with optimal panel holding
Gluing, Banding & Edge Cutting : Edges in rolls are loaded automatically and cut precisely to size with a cutter
End Cutting : Pneumatically operated End cutting unit has solid cutter to guarantee a clean, precision cut on the front and rear edges of the panel
Edge Fine Trimming : A) Compact and powerful high frequency motors guarantees best finish on top and bottom edges. B) Unit has copiers which are bearing mounted to ensure smooth panel feed. C) Very easy precision adjustment of trimming cutters by position indicators.
Buffing : Unit ensure surfaces to give a perfect polishing effect of the edges
Control Panel : Easy accessible user friendly control panel positioned at in-feed, for easy and quick operation
Radius Trim : For Chamfering of the Panel Corner, manually (Radius function Applicable For Model J-4300R.in Only)

Model No	Unit	J-4300.in
Work piece thickness range	mm	10 - 45
Minimum work piece width	mm	100
Minimum work piece length	mm	180
Edge Banding Thickness for PVC & ABS in coil form	mm	0.4 - 3.0
Workpiece Feed	m/min	6
Fine Trimming motor power	no / hp	2 x 0.5
Buffing motor power	no / hp	2 x 0.5
Radius trimming power	hp	n / a
Air pressure required	kg/cm²	6 to 7
Working temperature range	°C	180 - 200
Glue pot capacity	kg	1
Total power	hp	4

Salient Features :-

Technological easy Edge banding solution for entry level work

Workpiece infeed by special belt for smooth feeding

Automatic Edge loading system for rolled edges with pneumatic shear for the coil cut

Easy accessible control panel positioned at machine infeed, for easy & quick operations

Front telescopic support with roller conveyor for bigger work piece

Easy adjustment of trimming & buffing unit.

Low maintenance m/c,easy available cost effective spares, best service support
