These are preferred by wood-working workshops for its enhanced utility, trusted performance and rugged durability.

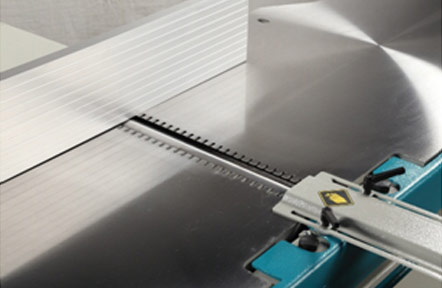

Surfacing table’s simultaneous opening with a 90° angle and rapid set up.
Noise dampening system for quiet operation

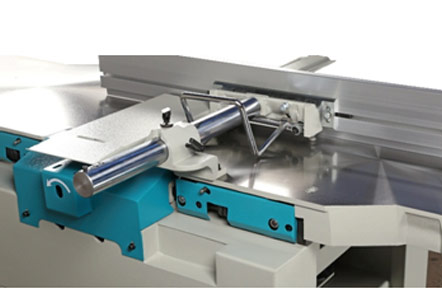

Ripfence fastened to a central support for an absolute rigidity

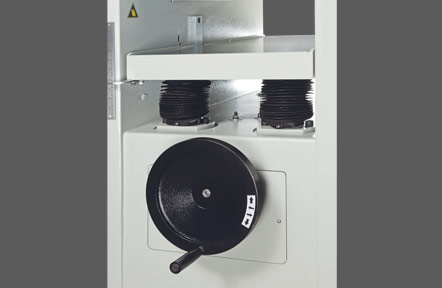

Thicknessing table lifting by 4 dust protected columns
Model |
J-4018 |
mm/inch |
|
Surfacing Capacity |
455 / 18" |
Max Planing width |
455 / 18" |
Thicknessing Capacity |
200 / 8" |
Length Of surface Table |
2130 / 84" |
Length Of Thickness Table |
775 / 30½" |
Min. Length of work piece for thicknessing |
254 / 10" |
Feeding Speed (feet per minute) |
24 |
Cutter block diameter |
95 / 3¾" |
Cutter block speed- RPM |
4000 |
Standard cutter block - code no. |
3B-W |
Size of Dust Collection Port-Dia. |
100 / 4" |
Power required - HP / RPM |
5 / 1440 |
Approx.wt.of machine - kg. |
800 |
Electric motor 1no.5hp - 1440rpm / 3 Phase, 3 planer blades fitted in cutter block, control panel,toolkit & m/c manual.
Note: Use Dust collector with the m/c for superior performance.
