This unique machine is a complement machine to an Edge Bander, and it is designed to trim and buff both upper and lower edges on straight panels and then pneumatically cut to give a sized and smooth banding on the edges of the straight panel. The machine is also suitable for radius trimming / chamfering of the panel corner with radius tool. The versatile nature of the machine allows differential trimming and/or buffing to be carried out either on top or bottom face of the panel or on the both panel faces.
1
2
3

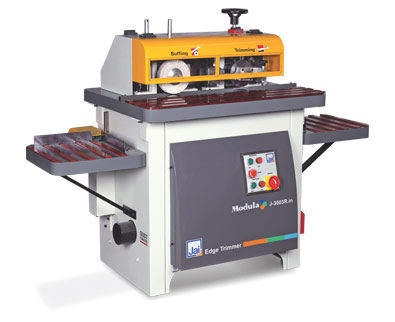

Model J-3003.in without Radius Trim also available
| Model No | Unit |
J-3003.in |
J-3003R.in |
| Trimming | |||
| Work piece thickness range | mm |
10 - 55 |
10 - 55 |
| Max.Trimming Thickness | mm |
3 |
3 |
| Spindle Speed | rpm |
11000 |
11000 |
| Power | hp |
0.33 |
0.33 |
| Buffing | |||
| workpiece Thickness Range | mm |
10 - 55 |
10 - 55 |
| Spindle Speed | rpm |
1400 |
1400 |
| Power | hp |
0.5 |
0.5 |
| Radius Trimming Power | hp |
n / a |
0.4 |
| Total power | hp |
0.83 |
1.23 |
Trimming & Buffing units have linear bearings for precision
Lateral adjustment by position indicator for edge trimming thickness 0.4 to 2 mm with 2R cutter
Workpiece thickness adjustment by position indicator
Top & bottom trimming for straight & curved panels
